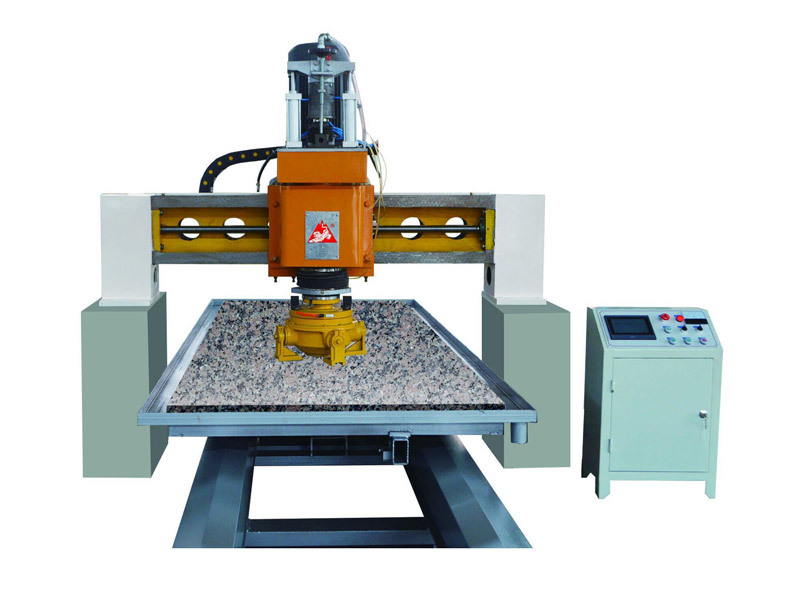

MODEL QM300×110/ QM300×130 BRIDGE TYPE SINGLE-HEAD GRINDING AND POLISHING MACHINE
MODEL QM300×110/ QM300×130 BRIDGE TYPE SINGLE-HEAD GRINDING AND POLISHING MACHINE

MODEL QM300×110/ QM300×130 BRIDGE TYPE SINGLE-HEAD GRINDING AND POLISHING MACHINE

Summary：

This machine is mainly applied to grind and polish marble and granite slabs. It is equipped with the most advanced pendulum grinding head, whose elevation is pneumatically controlled. Lateral and longitudinal movement of grinding head is accomplished by reducer of motor. Controlled automatically by PC programmer, this machine features reliable performance, stable, operation and high cut off efficiency.

Keywords: Stone machinery

Classification：

Stone Slab Grinding machine

e-mail

E-mail：

[email protected]

Related products
Messages

MODEL QM300×110/ QM300×130 BRIDGE TYPE SINGLE-HEAD GRINDING AND POLISHING MACHINE

This machine is mainly applied to grind and polish marble and granite slabs. It is equipped with the most advanced pendulum grinding head, whose elevation is pneumatically controlled. Lateral and longitudinal movement of grinding head is accomplished by reducer of motor. Controlled automatically by PC programmer, this machine features reliable performance, stable, operation and high cut off efficiency.

Model

QM300X110

QM300X130

Maximal size of slabs(L×W)

3000×1100mm

3000×1300mm

Maximal thickness of slabs

80mm

80mm

Number of grinding head

1piece

1piece

Installed power

12.5kw

12.5kw

Overall dimensions

5000×2025×2100mm

5000×2225×2100mm

Total weight

3000kg

3200kg

Air consumption

0.1m3/min

0.1m3/min
